Custom Gear RFQ



CUSTOM GEAR APPLICATIONS

 Thank you for reaching out to us for your custom gear requirements. Our Engineering team will review your request and will be in contact within 24 hours.

Manufacturing Capabilities:

  • Module 0.5~14 (20° Pressure Angle)
  • Max Outer diameter for Spur/Helical/Internal gears is Φ700mm
  • Max Rack Length in steel is 2000mm
  • Max Rack Length for Hardened or Plastic Racks is 1000mm
  • Minimum Pitch Height for Racks is 12mm
  • Max Outer diameter for Gleason Bevel Gears is Φ270mm
  • Max Outer diameter for Worms is Φ200mm
  • Minimum Bore diameter is Φ6mm (for mass production)
  • Spur Quality Grade JIS N5~JIS N12 (AGMA Equivalent 11~5)

Materials Available:

  • 4115, 4140, 1045, 303 or 304 Steels
  • Nylon 901 & 907
  • Acetal/POM
  • Sintered Metal
  • Bronze
  • Brass
  • Aluminum
  • Aluminum Bronze
  • Cast Iron
  • PEEK / Polymers / Exotic Steel materials available upon request

Please upload your detailed drawing, 3D model, or description using the form below:

File Uploads

*Acceptable formats include PDF, Word, .DWG, .DXF, .SLDDRW, .SLDPRT and/or .STP files

+ Add a file
No minimum order quantity
+ Add a file
No minimum order quantity

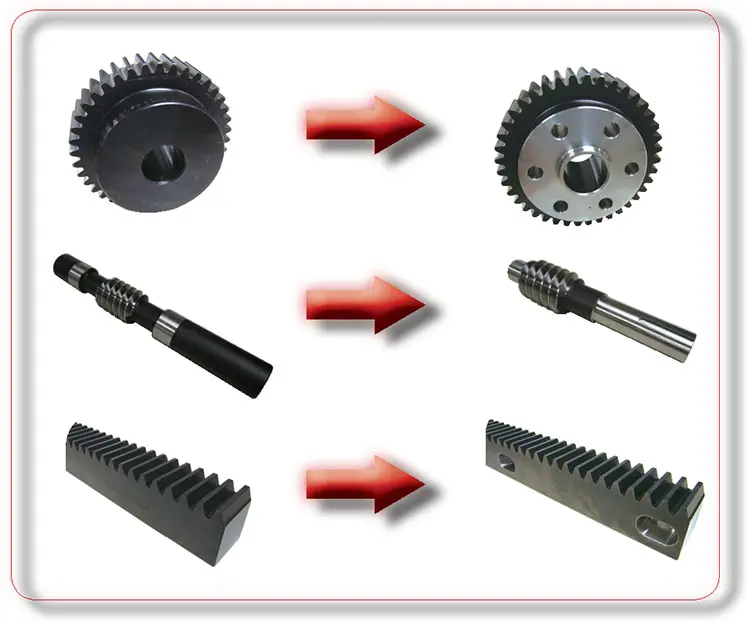

Examples of Modifications:

examples of modifications of gears for KHK
